DIN 2576 Flanges Dimensions, DIN 2576 Flanges Weight, DIN 2576 Flanges Dimension in MM
DIN 2576 Weld Neck Flanges Dimensions, DIN 2576 Lb Flange Dimensions, DIN 2576 Pipe Flange Dimensions, DIN 2576 Slip on Flanges Dimensions, DIN 2576 Raised Face Flange Dimensions in MM, DIN 2576 Blind Flange Dimension.
We, Radisson Impex are Exporters, Stockist, Suppliers & Traders of DIN 2576 Flanges in Mumbai, India. These DIN 2576 Pipe Flanges how unique features like remarkable anti-corrosiveness, robust structure, easy assembly and disassembly, higher flexibility, ease of maintenance and cost-effectiveness.
We are Suppliers of Good Quality DIN 2576 Standards Flanges, DIN 2576 Slip on Flanges, DIN 2576 Blind Flanges, DIN 2576 Weld Neck Flanges, DIN 2576 Pipe Flanges in India. Our DIN 2576 Flanges are known for their durability and strength.
We have a team of experienced professionals and knowledgeable employees that fabricate accurate flanges as per the national and international standards. Our DIN 2576 Flanges are resistant to oxidation, erosion and corrosion in any acidic and corrosive media.
These DIN 2576 Industrial Flanges are manufactured, Supplied and exported as per customer specifications. We, Radisson Impex are considered as a specialist in offering a huge amount of DIN 2576 Pipe Flanges.
DIN 2576 Flanges Specifications
| DIN 2576 Flanges Standards | ANSI B16.5, B16.48, B16.47 Series A & B, ASME B16.5, EN-1092, API-605, BS4504, BS 10, American standard Flange (ANSI), AWWA, ASA, MSS SP44, Custom Drawings |
|---|---|
| DIN 2576 Standards Flanges Class | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| DIN 2576 Standards Flanges Size | 1/2" (15 NB) to 48" (1200NB) / DN10~DN5000 |
| UNI Standards Flanges | 6Bar, 10Bar, 16Bar, 25Bar, 40Bar |
| EN Standards Flanges | 6Bar, 10Bar, 16Bar, 25Bar, 40Bar |
| JIS Standards Flanges | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| BS Standards Flanges | BS1560, BS10 BS4504, BS3293, British standard Flange (BS) |
| DIN 2576 Standards Flanges | 6Bar, 10Bar, 16Bar, 25Bar, 40Bar, PN6, PN10, PN16, PN25 PN40, PN64 |
| DIN Standards Flanges | DIN 2637, DIN 2627, DIN 2566, DIN 2527, DIN 2629, DIN 2631, DIN 2642, DIN 2573, DIN 2628, DIN 2638, DIN 2633, DIN 2634, DIN 2632, DIN 2635, DIN 2636, DIN 2576, DIN 2641, DIN 2655, DIN 2656 |
| Other Standard of Flanges | EN1092-1, KS B1503, SABS1123, NFE29203, GOST12820, JIS B2220, AWWA C207, UNI2276 |
| Main Types of DIN 2576 Flanges | Threaded, Screwed, Plate, Forged |
| Specialized manufacturer of |
DIN 2576 Plate Flanges DIN 2576 Weld Neck Flanges DIN 2576 Large Diameter Flange DIN 2576 2566 pn10 Flanges DIN 2576 Blind Flanges DIN 2576 Lap Joint Flanges DIN 2576 AS 4087 Water Flanges DIN 2576 Orifice Flanges DIN 2576 Socketweld Flanges DIN 2576 Loose Flanges DIN 2576 RTJ Flange DIN 2576 2566 pn16 DIN 2576 Threaded Flanges DIN 2576 2566 en 1092 1 DIN 2576 Sorf Flange DIN 2576 Table Flanges DIN 2576 Slip-On Flanges PN16 Flange |
| DIN 2576 Flanges Export to | Ghana, Malaysia, Australia, Netherlands, Vietnam, Nigeria, Turkey, South Korea, UK, Belgium, Saudi Arabia, Singapore, Iran, Mexico, Bangladesh, Thailand, Indonesia, India, Qatar, Kenya, Oman, Etc. |
| Material Test Certificates (MTC) as per EN 10204 3.1 & EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |

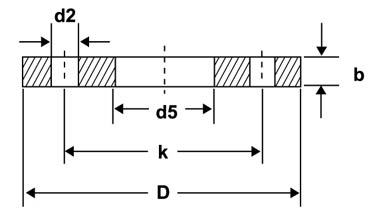

| Pipe | Flange | Bolts |
Weight of one flange 7.85 kg/ dm3) kg |
|||||||
| NW | d1 | ds | D | b1 | k | Number | Thread | d2 | ||
| 10 |
14 17.2) |
14.5 17.7 |
90 | 14 | 60 | 4 | M12 | (1/2") | 14 |
0.613 0.605 |
| 15 |
20 21.3) |
20.5 21.8 |
95 | 14 | 65 | 4 | M12 | (1/2") | 14 |
0675 0.669 |
| 20 |
25 26.9) |
25.5 27.4 |
105 | 16 | 75 | 4 | M12 | (1/2") | 14 |
0.947 0.936 |
| 25 |
30 33.7) |
30.5 34.2 |
115 | 16 | 85 | 4 | M12 | (1/2") | 14 |
1.14 1.11 |
| 32 |
38 42.4) |
38.5 42.9 |
140 | 16 | 100 | 4 | M16 | (5/8") | 18 |
1.66 1.62 |
| 40 |
44.5 48.3) |
45 48.8 |
150 | 16 | 110 | 4 | M16 | (5/8") | 18 |
1.89 1.86 |
| 50 |
57 60.3) |
57.5 60.8 |
165 | 18 | 125 | 4 | M16 | (5/8") | 18 |
2.51 2.47 |
| 65 | 76.1) | 76.6 | 185 | 18 | 145 | 4 | M16 | (5/8") | 18 | 3.00 |
| 80 | 88.9) | 89.4 | 200 | 20 | 160 | 4 | M16 | (5/8") | 18 | 3.79 |
| 100 |
108 114.3) |
108.5 114.8 |
220 | 20 | 180 | 8 | M16 | (5/8") | 18 |
4.20 4.03 |
| 125 |
133 139.7) |
133.5 140.2 |
250 | 22 | 210 | 8 | M16 | (5/8") | 18 |
5.71 5.46 |
| 150 |
159 168.3) |
159.5 168.8 |
285 | 22 | 210 | 8 | M16 | (3/4") | 23 |
6.72 6.57 |
| 175 |
191 193.7) |
192 194.7 |
315 | 24 | 270 | 8 | M20 | (3/4") | 23 |
8.60 8.45 |
| 200 |
216 219.1) |
216 220.1 |
340 | 24 | 295 | 8 | M20 | (3/4") | 23 |
9.50 9.31 |
| 250 |
267 273) |
268 274 |
395 | 26 | 350 | 12 | M20 | (3/4") | 23 |
12.5 11.9 |
| 400 |
406.4 419 |
407.4 420 |
565 | 32 | 515 | 16 | M24 | (7/8") | 27 |
27.9 25.9 |
| 500 |
508) 521 |
509 522 |
670 | 38 | 620 | 20 | M24 | (7/8") | 27 |
37.9 41.1 |
